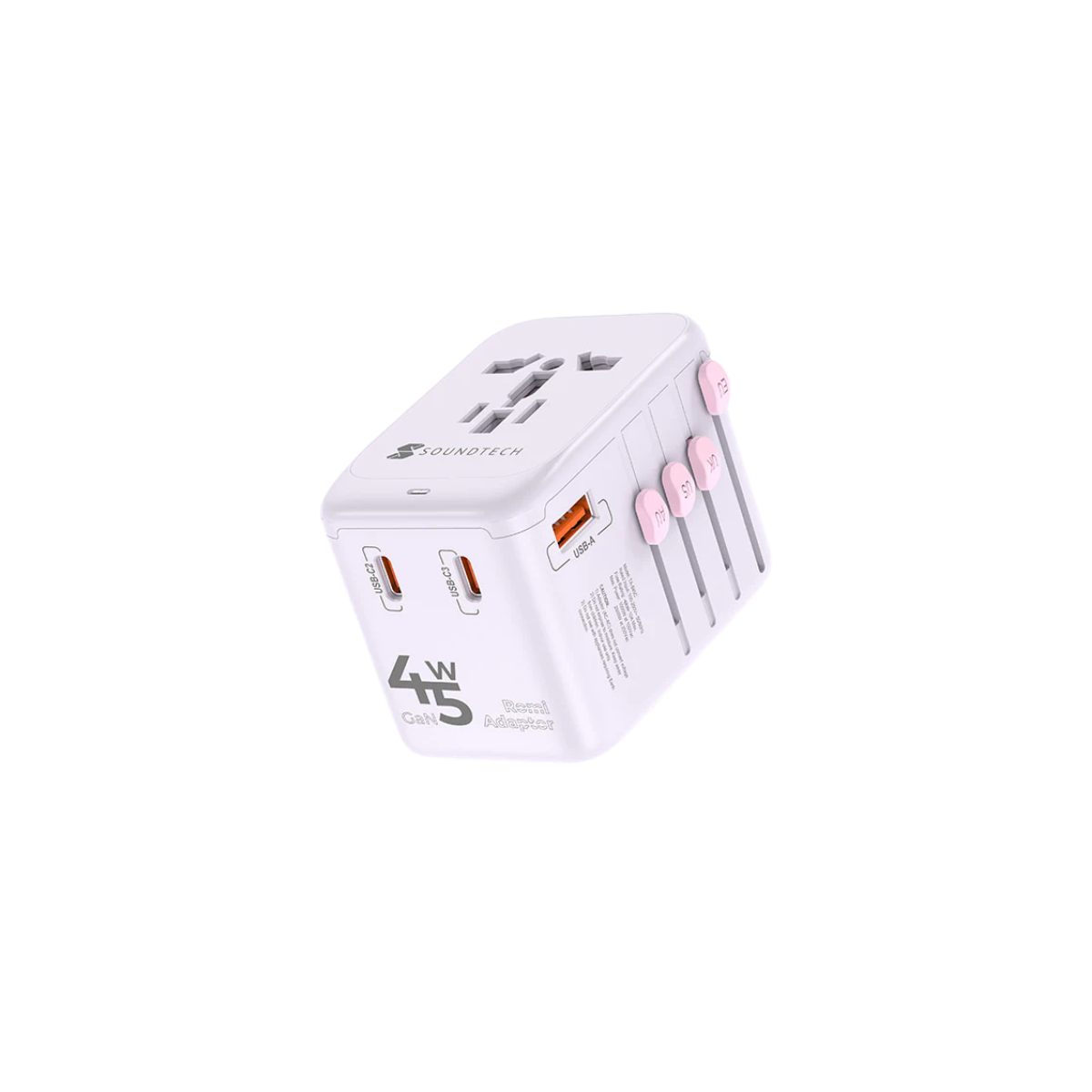

Soundteoh TA-845C Romi World Travel Adaptor 45W with USB Quick Charger
Features:
- Applicable for usage in more than 180 countries
- Universal socket outlet
- Safety Shutter
- Flame retardant PC casing
- Power indicator light
- Auto-resetting fuse
- 3 x USB-C GaN III (PD45W) port
- 1 x USB-A QC3.0 (45W) port
- 3 Year warranty (terms & conditions apply)
Auto-Resetting Fuse Protection:
- Overcurrent
- Over Temperature
- Overload
- Over Voltage
- Under Voltage
- Short-circuit
- Chip Protection
Specifications
Input: 100~250V AC, 50/60Hz
Auto-Resetting Fuse Rating: 10A
Rated Power: 1000W at 100V AC, 2500W at 250V AC
Total USB Output: 45W Max.
USB-C1 / C2 / C3 / USB-A Single Output: 5V/3A, 9V/3A, 12V/3A, 20V/2.25A (45W Max)
PPS: 3.3 - 16V/3A, 3.3 - 21V/2.25A
USB-C1 + USB-C2 / USB-C3 + USB-A: 5V/3A (15W Max)
USB-C1 + USB-C3: 5V/3A, 9V/2A, 12V/1.67A (20W Max) + 5V/3A, 9V/2A, 12V/1.67A (20W Max)
USB-C2 + USB-C3: 5V/3A, 9V/2A, 12V/1.67A (20W Max) + 5V/3A, 9V/2A, 12V/1.67A (20W Max)
USB-C1 + USB-A: 5V/3A, 9V/2A, 12V/1.67A (20W Max) + 5V/3A, 9V/2A, 12V/1.5A (18W Max)
USB-C2 + USB-A: 5V/3A, 9V/2A, 12V/1.67A (20W Max) + 5V/3A, 9V/3A, 12V/2.25A (27W Max)
USB-C1 + [USB-C2 + USB-A]: 5V/3A, 9V/2A, 12V/1.67A (20W Max) + 5V/3A (15W Max)
USB-C2 + USB-C3 + USB-A: 5V/3A, 9V/2A, 12V/1.67A (20W Max) + 5V/3A (15W Max) +
5V/3A (15W Max)
[USB-C1 + USB-C2] + USB-A: 5V/3A (15W Max) + 5V/3A, 9V/3A, 12V/2.25A,
20V/1.35A (27W Max)
USB-C1 + USB-C2 + USB-C3 + USB-A: 5V/6A (30W Max)
Product Dimension: L7.7cm x W5.4cm x H5.6cm
Product Weight: 0.2KG
How to use?
1. Press down and slide out the “UK/ AUS/ EU/ US” button to slide out the “UK/ AUS/ EU/ US” plug-pin. Ensure the plug pin is fully-extended and locked in position.
2. To retract, press down and hold the “Retract” button;
3. Then press down and slide in the “UK/ AUS/ EU/ US” button to retract the “UK/ AUS/ EU/ US” plug-pin back to its
original position.
Attention:
Due to the nature of Power Delivery (PD) charging function, while USB-C PD port is applied for charging operation with other USB-A port, it is normal for the USB-A charging device to temporarily cease charging for 1-2 seconds and resume charging again when the USB-C charging device is connected or disconnected from the USB-C PD port.
