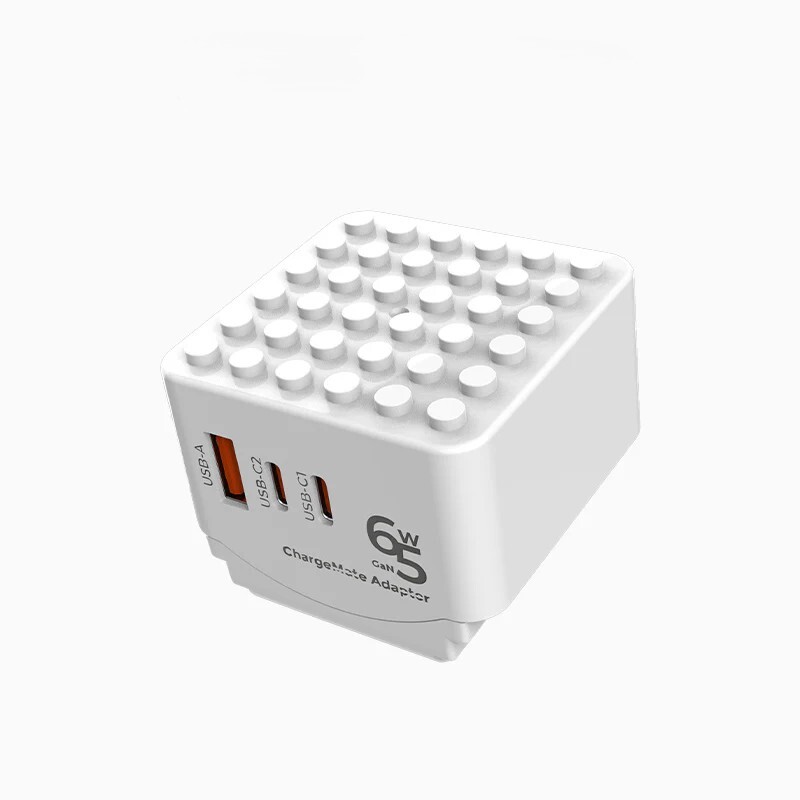

SoundTeoh TA-865C Chargemate Adaptor
Features/ Description
- Applicable for usage in more than 180 countries
- Flame retardant PC casing
- Fuse protection: when short-circuit or overloading situation happens, the USB travel adaptor's fuse will blow to limit and protect the circuit
- 2 x USB-C GaN III (PD65W) port
- 1 x USB-A QC3.0 (30W) port
- 3 Year warranty (terms & conditions apply)
USB Protections
- Overcurrent
- Over Temperature
- Overload
- Over Voltage
- Under Voltage
- Short-circuit
- Chip Protection
- Overcharge
Attention:
Due to the nature of Power Delivery (PD) charging function, while USB-C GaN III port is applied for charging operation with other USB-A or C port, it is normal for the USB-A or C charging device to temporarily cease charging for 1-2 seconds and resume charging again when the USB-C charging device is connected or disconnected from the USB-C GaN III port.
Specification
- Rated Input: 100~240V AC, 50/60Hz, 1.5A
- Fuse Rating: 10A
- Total USB Output: 65W Max.
- USB-C1 / C2 Output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A (65W Max)
- PPS: 3.3-11V/4.5A
- USB-A Output: 5V/3A, 9V/3A, 12V/2.5A (30W Max)
- USB-C1 + USB-C2 Output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A(45W Max) + 5V/3A, 9V/2.22A, 12V/1.67A(20W Max)
- USB-C1 + USB-A Output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A(45W Max) + 5V/3A, 9V/2.22A, 12V/1.5A(18W Max)
- USB-C2 + USB-A Output: 5V/3A (15W Max)
- USB-C1 + [USB-C2 + USB-A] Output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A(45W Max) + [5V/3A(15W Max)]
- Model No.: TA-865
- Packing Dimension: L10cm x W4.8cm x H15.5cm
- Weight: 0.25kg
