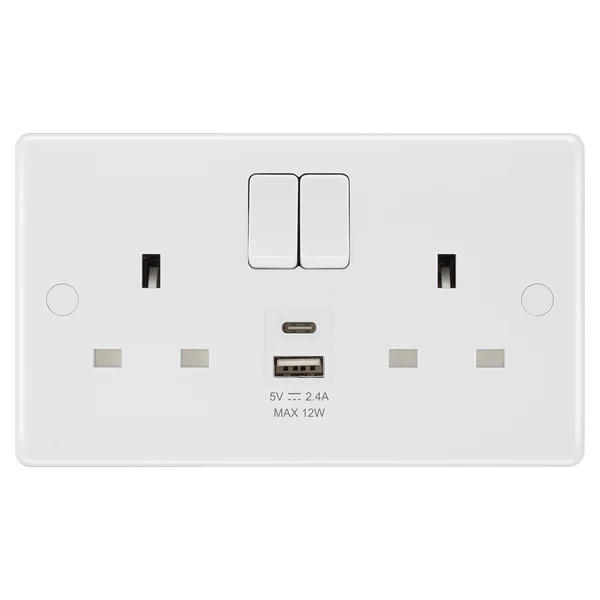

British General Moulded Double Gang Switched 13A Power Socket 12W USB-C+A (822UAC12)
Description
Upgrade your power setup with the British General 822UAC12 Nexus White USB Power Socket. Designed for both convenience and style, this modern wall socket integrates dual USB ports—USB-A and USB-C—allowing you to charge multiple devices such as smartphones, tablets, and cameras without losing access to standard UK power outlets. With antimicrobial protection and advanced smart-charging safety features, it's the ideal choice for homes, offices, and commercial environments.
Features
- Dual USB Charging: Integrated USB-A and USB-C ports with a shared 12W max output (5V, 2.4A).
- Smart Charging Technology: Automatically adjusts voltage to deliver safe, efficient charging to each device.
- Built-in Safety Protection: Overcurrent protection with automatic recovery ensures secure operation.
- Antimicrobial Housing: Constructed with certified thermoset urea to inhibit the growth of MRSA, E. Coli, Salmonella, and Klebsiella Pneumonia.
- Premium Aesthetic: Finished in sleek white with soft, rounded edges for a clean, modern look.
- Installer-Friendly Design: Includes color-coded terminals and backed-out captive screws for easy installation.
- Reliable Construction: Twin earth terminals for added safety and circuit integrity.
Specifications
- Voltage Rating: 250V AC
- Current Rating: 13 Amp
- USB Output: Max 12W (5V, 2.4A shared across USB-A & USB-C)
- Standby Power: < 100mW
- Output Tolerance: < 5%
- Mounting Box Depth (Min.): 25mm
- Fixing Centers: 120.6mm
- Terminal Capacity: 3 × 2.5mm², 3 × 4.0mm², 2 × 6.0mm²
- Material: White moulded thermoset urea with antimicrobial properties
- Compliance: BS 1363-2:2016+A1:2018, BS EN 62368-1:2014, EN55032, RoHS & WEEE Compliant
Package Includes
- 1 × British General 822UAC12 Nexus White USB Power Socket
- Instruction Manual
Installation Note:
Professional installation is recommended. Requires a minimum 25mm mounting box depth.
Manufacturer Warranty: 10 Year
Covers defects in materials and workmanship under normal usage conditions.
