Schneider Electric AvatarOn Anti-bacterial 16AX 250V 1-Way Switch (White)

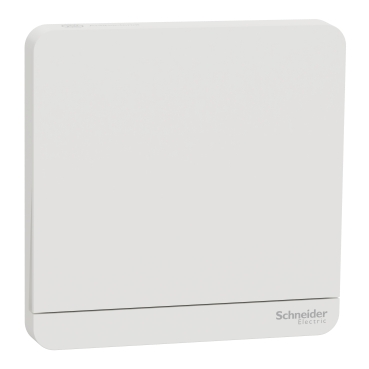

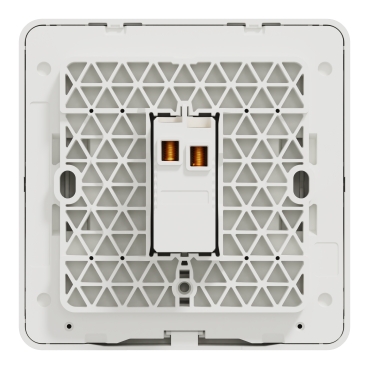

E8331L1_AWE 1 Gang 1 Way



• Colour Tint: White
• Rated Current: 16AX 250V AC 50/60Hz
• Switch Function: 1 pole 1 way
• Number of Gangs: 1 gang
• Number of Rocker: 1
• Clamping Connection Capacity:
  • 3 x 2.5 mm² for solid cable(s)
  • 3 x 2.5 mm² for stranded cable(s)
  • 4 x 1.5 mm² for solid cable(s)
  • 4 x 1.5 mm² for stranded cable(s)
• Connections - Terminals: Brass Terminal
• Material:
  • Polycarbonate: grid plate, base, dolly, frame
  • Polycarbonate + GF 20%: actuator
• Surface Treatment: Antibacterial
• Device Mounting: Flush, surface
• Dimensions: W86 x H86 x D34.2 mm
• Embedding Depth: 24.5 mm
• IP Degree of Protection: IP20
• Maximum Ambient Air Temperature for Operation: 35°C
• Operating Altitude: 2000 m
• Relative Humidity: 0...95%
• Standards: GB 16915.1

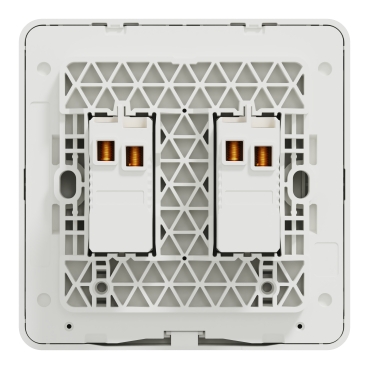

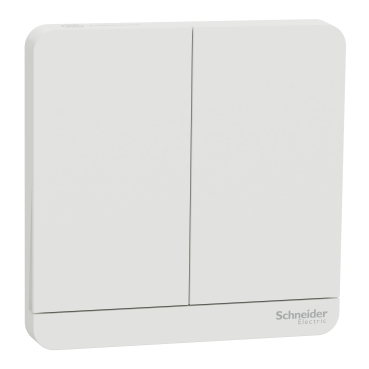

E8332L1_AWE 2 Gang 1 Way



• Colour Tint: White
• Rated Current: 16AX 250V AC 50/60Hz
• Switch Function: 1 pole 1 way
• Number of Gangs: 2 gangs
• Number of Rocker: 2
• Clamping Connection Capacity:
  • 3 x 2.5 mm² for solid cable(s)
  • 3 x 2.5 mm² for stranded cable(s)
  • 4 x 1.5 mm² for solid cable(s)
  • 4 x 1.5 mm² for stranded cable(s)
• Connections - Terminals: Brass Terminal
• Material:
  • Polycarbonate: grid plate, base, dolly, frame
  • Polycarbonate + GF 20%: actuator
• Surface Treatment: Antibacterial
• Device Mounting: Flush, surface
• Dimensions: W86 x H86 x D34.2 mm
• IP Degree of Protection: IP20
• Maximum Ambient Air Temperature for Operation: 45°C
• Operating Altitude: 2000 m
• Relative Humidity: 0...95%
• Environmental Characteristic: UV Resistant
• Standards:
  • IEC 60669-1
  • BS EN 60669-1
  • SS 227-1
  • MS IEC 60669-1

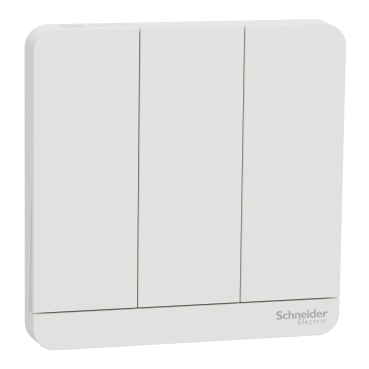

E8333L1_AWE 3 Gang 1 Way



• Colour Tint: White
• Rated Current: 16AX 250V AC 50/60Hz
• Switch Function: 1 pole 1 way
• Number of Gangs: 3 gangs
• Number of Rocker: 3
• Clamping Connection Capacity:
  • 3 x 2.5 mm² for solid cable(s)
  • 3 x 2.5 mm² for stranded cable(s)
  • 4 x 1.5 mm² for solid cable(s)
  • 4 x 1.5 mm² for stranded cable(s)
• Connections - Terminals: Brass Terminal
• Material:
  • Polycarbonate: grid plate, base, dolly, frame
  • Polycarbonate + GF 20%: actuator
• Surface Treatment: Antibacterial
• Device Mounting: Flush, surface
• Dimensions: W86 x H86 x D34.2 mm
• IP Degree of Protection: IP20
• Maximum Ambient Air Temperature for Operation: 45°C
• Operating Altitude: 2000 m
• Relative Humidity: 0...95%
• Environmental Characteristic: UV Resistant
• Standards:
  • IEC 60669-1
  • BS EN 60669-1
  • SS 227-1
  • MS IEC 60669-1

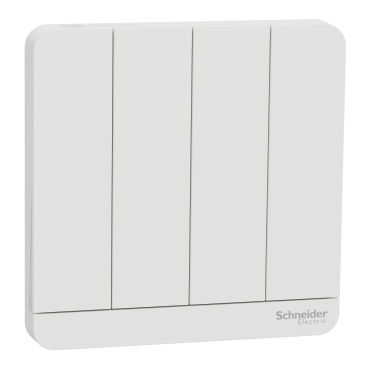

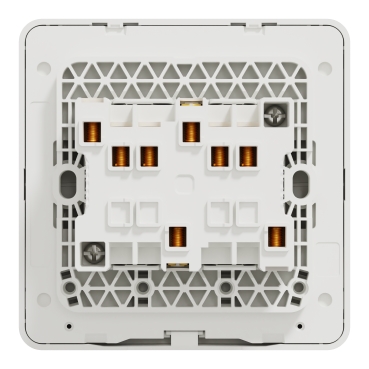

E8334L1_AWE 4 Gang 1 Way



• Colour Tint: White
• Rated Current: 16AX 250V AC 50/60Hz
• Switch Function: 1 pole 1 way
• Number of Gangs: 4 gangs
• Number of Rocker: 4
• Clamping Connection Capacity:
  • 3 x 2.5 mm² for solid cable(s)
  • 3 x 2.5 mm² for stranded cable(s)
  • 4 x 1.5 mm² for solid cable(s)
  • 4 x 1.5 mm² for stranded cable(s)
• Connections - Terminals: Brass Terminal
• Material:
  • Polycarbonate: grid plate, base, dolly, frame
  • Polycarbonate + GF 20%: actuator
• Surface Treatment: Antibacterial
• Device Mounting: Flush, surface
• Dimensions: W86 x H86 x D34.2 mm
• IP Degree of Protection: IP20
• Maximum Ambient Air Temperature for Operation: 45°C
• Operating Altitude: 2000 m
• Relative Humidity: 0...95%
• Environmental Characteristic: UV Resistant
• Standards:
  • IEC 60669-1
  • BS EN 60669-1
  • SS 227-1
  • MS IEC 60669-1
